7-inch Full HD LCD

Optical bonding

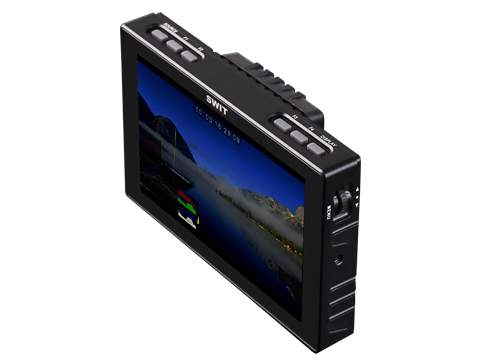

The S-1073F adopts a 7-inch LCD panel with LED backlight, optical bonding technical. The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°


All Metal Housing

S-1073F adopts aluminium alloy housing, thinner and robust, suitable for outdoor on-camera video monitoring.


Input/Output Interfaces

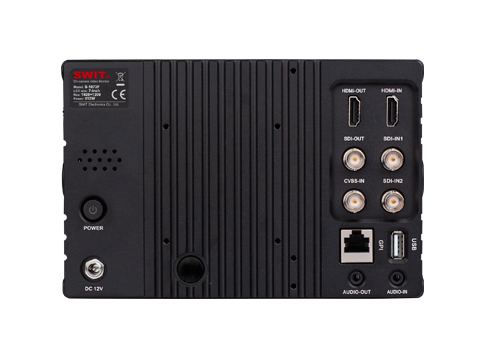

SDI & HDMI


S-1073F monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1
HDMI 1.3 input × 1
HDMI 1.3 loop output × 1
HDMI to SDI output × 1 (share SDI loop port)
3.5mm analog audio input × 1
3.5mm analog audio output × 1
GPI/TALLY input × 1
USB × 1 (firmware upgrade)


Build-in HDMI to SDI Conversion

S-1073F supports build-in HDMI to SDI conversion; share the SDI loop output port. It’s same format conversion and supports the following HDMI formats: 480i, 576i, 720p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
Note: When both SDI and HDMI input, if the current display source is SDI, the SDI output port is SDI loop; and if the current display source is HDMI, the SDI output port is HDMI conversion output.


9-step Quick Zoom-in

Up/Down/Left/Right mapping

Assign the zoom-in mode to any of the F keys, and enable zoom-in mode. Scroll the menu key you can quickly zoom in the video by the following rates: 1.2x, 1.5x, 1.8x, 2.0x, 2.4x, 2.6x, 2.8x, 3.0x, without black waiting.
Press the menu key to switch to Left/Right mapping function, and press again to switch to Up/Down mapping, and press again to switch to focus assist precision adjustment. (Enable focus assist function first)


3DLUT Log to Rec709

S-1073F monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2， S-log3, V-log, J-log1, RedLogFilm.
You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.


Embedded audio monitoring

S-1073F supports SDI-16ch, HDMI-2ch and analog audio 2-ch audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.


GPI and Soft TALLY

S-1073F supports GPI control input via rear RJ45(RS485) port. Users can define the functions for each GPI pins, including Red/Green/Yellow Tally signals.
The monitor screen will display soft Tally signal, which flashes as Red/Green/Yellow according to the GPI settings.。

One-key Menu and Function Keys

S-1073F has a Revolve/Push Menu button, with one-button operation for menu system. On the top of the monitor there’re 4 user definable function keys, and you can quickly set the functions by long-press the function keys.

The F1-F4 keys support the following functions:
Audio meters, Histogram, False color, AFD, H/V delay, R/G/B/Mono, scale markers, Colorbar, UMD, Audio alert, Max backlight, Peaking focus assist, Aspect ratio, Scan mode, Zoom mode, Mute, Freeze frame, Flip, Waveform, Color temperature, Timecode, Zebra, Vector scope.


USB Firmware Upgrade

The monitor provides a standard USB port on the side, for firmware upgrade. Users can download the latest firmware file to a USB stick, and insert into S-1073F monitor to upgrade, without PC connection.

S-1073F supports DC 6.5-36V input via a 5.5mm lockable DC socket, and can install SWIT S-7006 series V-mount / Gold mount / DV battery plates to power:

Foldable Sun Hood

For outdoor using, the S-1073F provides a sun hood that is foldable designed and snap-on installation to the monitor.
