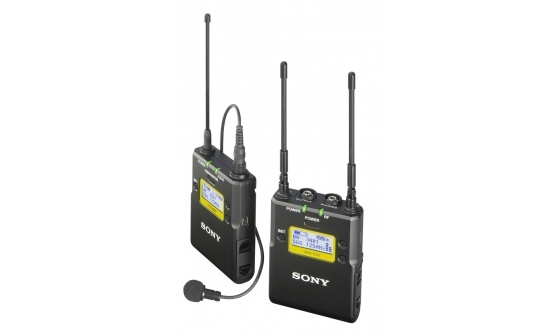

SONY PXW-Z190 4K 套組含SONY UWP-D11 K14 專業無線麥克風組 ( 含Pelican Im2050 防震箱)

• Three 1/3" Exmor R CMOS Sensors
• 4K 60p Recording
• Integrated 25x Sony G Optical Zoom Lens
• Electronic Variable ND Filter

PXW-Z190(PXWZ190)

4K Handheld Camcorder with all-new 1/3-type 3CMOS with 4K 50p/60p* recording capability, 25x zoom lens, and advanced Face Detection AF

Mass

Approx 2.3 kg (body)
Approx. 5 lb 1.1 oz (body)
Approx. 2.8 kg (with lens hood, eyecup, BP-U30 battery, a SD memory card)
Approx. 6 lb 2.8 oz (with lens hood, eyecup, BP-U30 battery, a SD memory card)

Dimensions (W x H x D)

190.0 × 202.0 × 419.7 mm (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)
7 1/2 x 8 x 16 1/2 inches (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)

Power Requirements

DC In: 12 V,
Battery: 14.4 V

Power Consumption

Approx. 22W
(while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 29W
(while recording with LCD On, EVF On when the external device connector is used.)

Operating Temperature

0°C to 40°C
32°F to 104°F

Storage Temperature

-20°C to +60°C
-4°F to +140°F

Recording Format (Video)

XAVC-L QFHD mode:
VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC
XAVC-L HD 50 mode:
VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC
XAVC-L HD 35 mode:
VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC
XAVC-L HD 25 mode:
VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC


DVCAM mode:
CBR, 25Mbps, DVCAM

Recording Format (Audio)

XAVC-L mode:
LPCM 24-bit, 48 kHz, 4 channels


DVCAM mode:
LPCM 16-bit, 48 kHz, 4 channels

Recording Frame Rate

XAVC-L QFHD 150 mode:
3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 50 mode:
1920 x 1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P 1280 x 720/59.94P, 50P
XAVC-L HD 35 mode:
1920 x 1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L HD 25 mode:
1920 x 1080/59.94i, 50i


DVCAM mode:
720 x 480/59.94i, 29.97PsF 720 x 576/50i, 25PsF

Recording/Playback Time

XAVC-L QFHD 150 mode
When using 128 GB memory card:
Approx. 88 minutes
XAVC-L HD 50 mode
When using 128 GB memory card:
Approx. 240 minutes
XAVC-L HD 35 mode
When using 128 GB memory card:
Approx. 325 minutes
XAVC-L 25 mode
When using 128 GB memory card:
Approx. 445 minutes


When using 128 GB memory card: Approx. 425 minutes

Recording Format (Proxy Audio)

XAVC Proxy: AAC-LC, 128 kbps, 2 channels

Recording Format (Proxy Video)

XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
1920 x 1080, 9Mbps
1280 x 720, 9Mbps
1280 x 720, 6Mbps
640 x 360, 3Mbps
480 x 270, 1Mbps
480 x 270, 0.5Mbps
